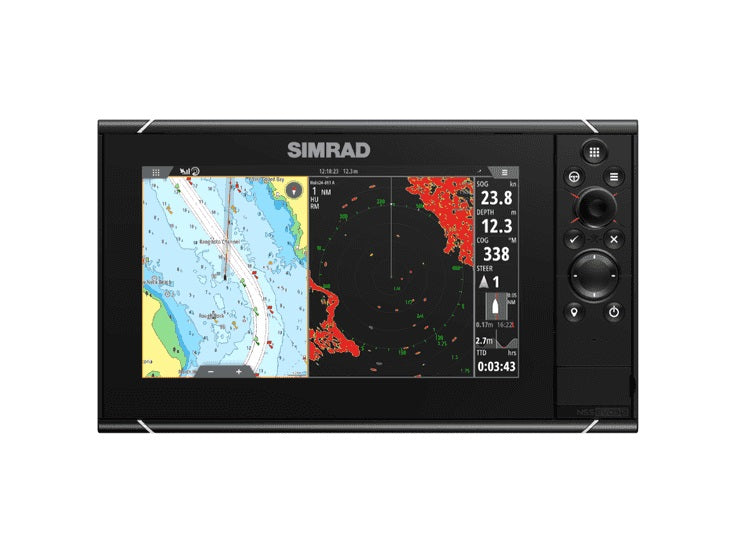

Simrad Nss9 Evo3s Combo Mfd With C-map Us Enhanced Map
Simrad Nss9 Evo3s Combo Mfd With C-map Us Enhanced Map
Regular price
$2,399.00
Regular price
Sale price
$2,399.00
Unit price
per
Simrad NSS evo3S 9in Display
Model: 000-15402-001- High Resolution, High Bright, SolarMax IPS Displays
- Easy to use touchscreen UI as well as full keypad for simple and precise control in any sea conditions
- Built-in advanced echosounder capable of 1kW Dual channel CHIRP, Forwardscan, Sidescan, Downscan and StructureScan 3D images
- Take another step forward with Simrad’s premium network modules for the ultimate offshore performance
- Halo Dome and Open Array Radars: S5100 Sportfishing Echosounder, Direct audio, autopilot and engine connection and control
- Low profile glass dash styling
- Built in Wi-Fi connectivity
- Next Generation Processor
- SolarMAX IPS Display Technology
- Multi-touch screen and keypad hybrid control
- Built-in Advanced Echosounder
NSS evo3S is a mid-life update to the NSS evo3. The key difference is a next generation processor. This greatly improves the speed and smoothness of the display. The NSS evo3 is already a feature packed product and the new processor in the evo3S means that each one of those features is now improved
SpecificationsPhysical | |
Dimensions | 287 x 166 x 90 mm (11.30 x 6.55 x 3.50"")with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72) |
Weight | 1.41kg/3.11lb |
Environmental | |
Operating temperature range | -15°C to +55°C (5° F to 131° F) |
Environment Shock Vibration | 100,000 cycles of 20G |
Storage temperature range | -20°C to +60°C (4°F to 140°F) |
Water resitance | IPX6 and 7 |
Power | |
Supply voltage | 10 - 31.2 V DC |
Fuse rating | 5A |
Power consumption (Max) | 21W |
Display | |
Display backlight color | White |
Display resolution | 600 x 1280 |
Display screen brightness | 1200 nits |
Display size and type | High Visibility SolarMax HD® IPS 7"" optically bonded TFT |
Display viewing angles | 80° top/bottom, 80° left/right |
Connectivity | |
Ethernet | 1 x 5 pin yellow connector x 1 Mbit |
Bluetooth | Internal |
NMEA2000 connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
NMEA 0183 connectivity | 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001) |
Video connectivity | 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
WiFi connectivity | Internal |
Sonar | |
Sonar frequencies | 40-250kHz 455-800kHz |
Sonar max depth | 3000’+ (tested with B175L) |
Sonar output power | 1kW RMS |
Compliance | Compliance |
GPS | |
GPS | Internal |
GPS update rate | 10 Hz |
GPS channels | 34 |
GPS correction | WASS, EGNOS, MSAS, GLONASS |
GPS position accuracy | Horizontal Accuracy 3 m (9.8 ft) |
GPS time to first fix | Cold start 50 sec, Satellite Reacquisition 5 sec |
What's in the Box:
- NSS evo3S 9"" Display
- NSS9 EVO3 SUN COVER
- NSS9 EVO3 & ZEUS - 9 Mounting Bracket
- NSS9 EVO3 & ZEUS3 - 9 DASH MOUNT KIT
- NSS9 EVO3 & ZEUS3 — 9 EDGE BEZELS
- Power Cable
