Raymarine

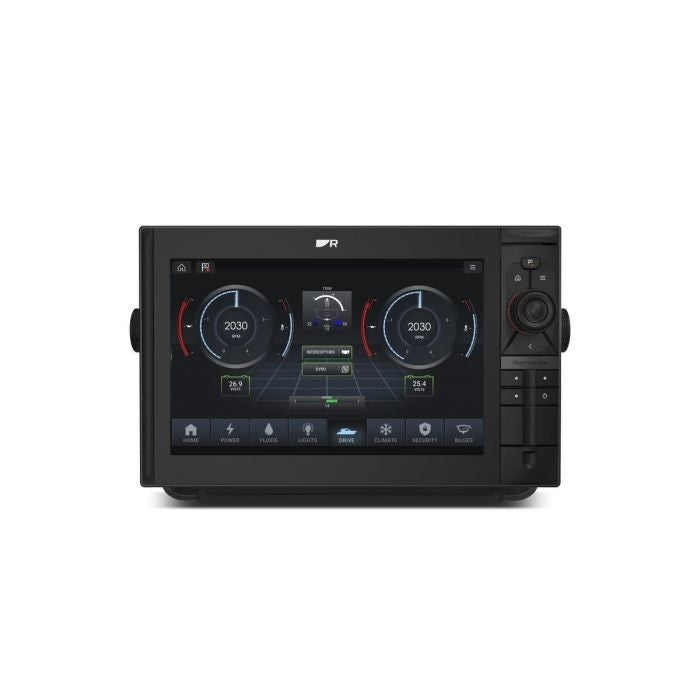

Raymarine Axiom2 Pro 12s Rvm No Transducer Lighthouse North America Chart

Raymarine Axiom2 Pro 12s Rvm No Transducer Lighthouse North America Chart

Regular price $4,449.99
Regular price Sale price $4,449.99
Sale Sold out

Raymarine Axiom2 Pro 12RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar with Lighthouse North America Chart

Model: E70656-00-102

Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.

Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.

Specifications
PHYSICAL
Dimensions (Trunnion mounted) Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in)
Dimensions (Surface/Flush mounted) Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in)
CONNECTIONS
Ethernet connection 2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection DeviceNet connector
Wi-Fi Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth v4.0
Accessory connection USB Micro B
Internal storage 64GB Solid State
External storage 2 front mounted MicroSDXC card slots
Digital Video and Audio HDMI Out Micro connector type D
Analog video connections BNC Analog video input (on power cable)
Analog audio connections RCA connectors via power cable
External GPS anternna TNC connector
POWER
Power consumption @ 12 V dc 29.88 W
Power consumption @ 24 V dc 28.8 W
Operating voltage range 8 V dc to 32 V dc
Nominal supply voltage 12 V dc / 24 V dc
Off current @ 12 V dc 11 mA (0.13 W)
Off current @ 24 V dc 18 mA (0.43 W)
LEN (NMEA 2000 Load Equivalency Number) 1
Current 5 A
Fuse rating 15 A
ENVIRONMENTAL
Operating temperature -25°C to +55°C (-13°F to 131°F)
Storage temperature -30°C to +70°C (-22°F to 158°F)
Relative humidity Up to 93% @ 40°C (104°F)
Waterproof rating IPx6, IPx7
LCD
Size (diagonal) 12.1""
Resolution 1280 x 800 WXGA
Viewing angle Top 88° / Bottom 88° / Left 88° / Right 88°
Type IPS (In-Plane Switching)
Color depth 24-bit
Illumination 1200 nits / 1200 cd/m2
Number of simultaneous touches 1 to 16
GPS (GNSS)
Position Accuracy Without SBAS: ≤15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS) WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels Track up to 28 satellites simultaneously
Antenna Internal - Ceramic chip mounted near top of unit
GNSS compatibility GPS, Galileo, GLONASS, Beidou
Almanac Update Automatic
Refresh rate 10 Hz (10 times per second)
SONAR
Power output RealVision MAX high CHIRP sonar channel: 600 Watts RMS
Traditional dual channel CHIRP channel: 1kW RMS
Sonar channels RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)
1kW CHIRP Port: 42 - 250kHz (Transducer dependent)
RealVision MAX Depth range 25-pin RealVision type connector: High CHIRP conical sonar: 366 m (1200 ft), DownVision: 183 m (600 ft), SideVision: 91 m (300 ft), RealVision 3D: 91 m (300 ft)
1 kW Depth range 11 pin 1kW connector: : 0.9 m (3 ft) to 914.4 m (3,000 ft) (In optimum conditions using a 1kW transducer)
Connections 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, and 1 x 11-pin 1kW transducer connector

What's in the Box:
  • Axiom 2 Pro 12 RVM
  • Suncover
  • Gasket
  • Trunnion knobs (x 2)
  • Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
  • Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
  • DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
  • RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
  • Mounting fixings x4
  • Documentation
  • Power/Video/Audio cable 1.5 m (4.92 ft)
  • Lighthouse North America Chart
