Lowrance

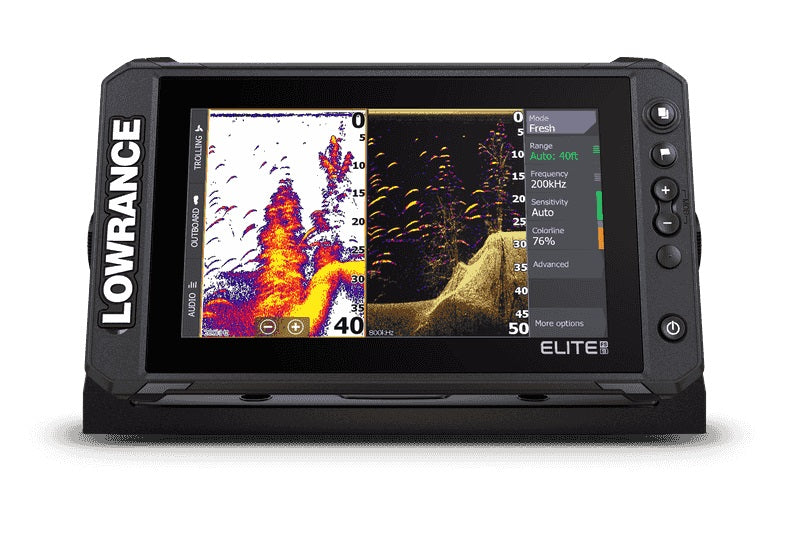

Lowrance Elite Fs 9 No Transducer
Lowrance Elite Fs 9 No Transducer
Regular price
$849.00
Regular price
Sale price
$849.00
Unit price
per
Lowrance Elite FS 9 No Transducer
Model: 000-15707-001- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Halo Radar: Drive Lowrance radar domes directly
Environmental | |
Operating temperature range | -15°C to +55°C (5°F to 131°F) |
Storage temperature | -20°C to +60°C (4°F to 140°F) |
Waterproof rating | IPX6 and IPX7 |
Electrical | |
Supply voltage | 12 V DC (10 - 17 V DC min - max) |
Recommended fuse rating | 3 A |
Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
Display | |
Resolution | 800 x 480 pixels |
Viewing angles in degrees | 50° top, 60° bottom, 70° left and right |
Brightness | > 1200 nits |
Touch screen | Multitouch |
Physical | |
Weight (display only) | 1.2 kg (2.7 lbs.) |
Compass Safe Distance | 0.5 m (1.6 ft.) |
Interface/Connectivity | |
NMEA 2000® | 1 port (Micro-C connector) |
Data card reader | 1x slot (microSD, SDXC) |
Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
Sonar | 1 port (9-pin connector) |
WiFI Internal | 802.11b/g/n : No wireless networking between units |
Bluetooth® | 4.0 with support for Bluetooth® Classic |
GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What's in the Box:
- Elite FS 9 Display
- Sun cover
- Mouning bracket and knobs
- Power cable
- Fuse and fuse holder
