Garmin

Garmin Gt30-thp Thru Hull Pair Scanning Transducer

Garmin Gt30-thp Thru Hull Pair Scanning Transducer

Regular price $1,399.99
Regular price Sale price $1,399.99
Sale Sold out

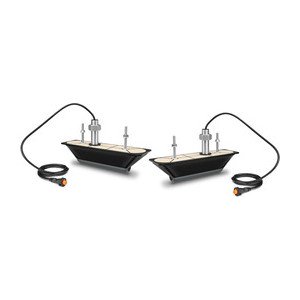

Garmin GT30-THP Thru Hull Pair

Scanning Transducer

Model: 010-01961-11

Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.

These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz ; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.

Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Specifications
General
Frequency
ClearVü/SideVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz)
Power
ClearVü/SideVü 500 W
Beamwidth
ClearVü 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz
SideVü 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz
Maximum depth
ClearVü 750 ft
SideVü 500 ft.
Depth/Speed/Temperature Depth and Temperature
Number of pins 12-pin
Cable length 5 ft. + 30 ft. y-extension cable
Supported deadrise/Transom angles Up to 25° deadrise
