Garmin

Garmin Gpsmap8610xsv Ice House Livescope Plus System Gn+ Us Inland

Garmin Gpsmap8610xsv Ice House Livescope Plus System Gn+ Us Inland

Regular price $3,999.99 USD
Regular price $4,699.99 USD Sale price $3,999.99 USD
Sale Sold out

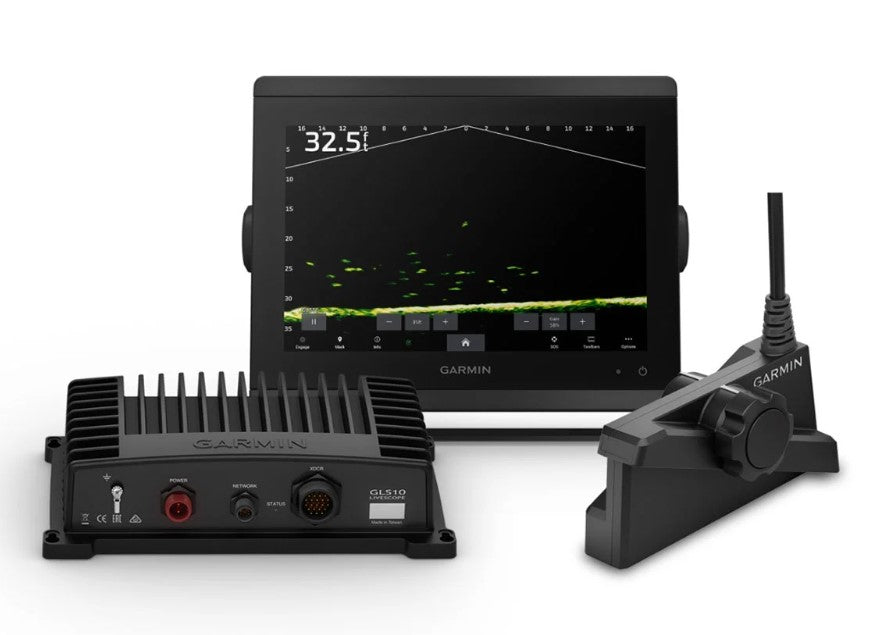

Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland

Model: 020-00332-00
  • 10" FULL HD IPS TOUCHSCREEN DISPLAY
  • SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT (HDMI CABLE NOT INCLUDED)
  • LIVESCOPE™ FORWARD AND LIVESCOPE™ DOWN MODES
  • PRELOADED WITH GARMIN NAVIONICS+™ MAPPING OF 25,000+ INLAND AND COASTAL LAKES

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.

This chartplotter features a 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.

Create custom pages that combine sonar and maps on your display.

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

Specifications
General
TOUCHSCREEN Yes
INPUT Touchscreen
DISPLAY SIZE 8.6"" x 5.4""; 10.1"" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)
DISPLAY RESOLUTION 1920 x 1200 pixels
DISPLAY TYPE WUXGA, IPS
WEIGHT 15.4 lbs (7.0 kg)
WATERPROOF IPX7
Maps & Memory
ACCEPTS DATA CARDS 2 microSD™ cards
WAYPOINTS 5000
TRACK POINTS 50,000
TRACKS 50 saved tracks
NAVIGATION ROUTES 100
Ice Fishing Details
BAG SIZE None
INCLUDED TRANSDUCER LiveScope™ Plus System with LVS34-IF
TRANSDUCER HOLDING FEATURE Pole mount
Sensors
HAS BUILT-IN RECEIVER Yes
RECEIVER 10 Hz
NMEA 2000 COMPATIBLE Yes
GPS Yes
GLONASS Yes
GALILEO Yes
SUPPORTS WAAS Yes
Sonar Features & Specifications
DISPLAYS SONAR Yes
POWER OUTPUT 1 kW
TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
CLEARVU built-in 260/455/800/1000/1200 kHz
SIDEVU built-in 260/455/800/1000/1200 kHz
PANOPTIX™ SONAR Yes
LIVESCOPE Yes
Connections
NMEA 2000® PORTS 1
VIDEO INPUT PORTS 1 (BNC composite); 1 HDMI (HDCP compliant)
VIDEO OUTPUT PORTS 1 HDMI
GARMIN MARINE NETWORK PORTS 2
8-PIN TRANSDUCER PORTS Yes
12-PIN TRANSDUCER PORTS Yes
BLUETOOTH® PAIRING Yes
ANT+ (CONNECTIVITY) Yes
GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes
Input Voltage 10 to 32 Vdc
Dimensions 10.25"" x 8.0625"" x 2.95"" (25.9 cm x 20.5 cm x 7.5 cm)

What's in the Box:
  • GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S.
  • LiveScope Plus LVS34-IF transducer
  • GLS™ 10 black box sonar module with power and network cables
  • Ice fishing pole mount
  • Documentation
