Garmin

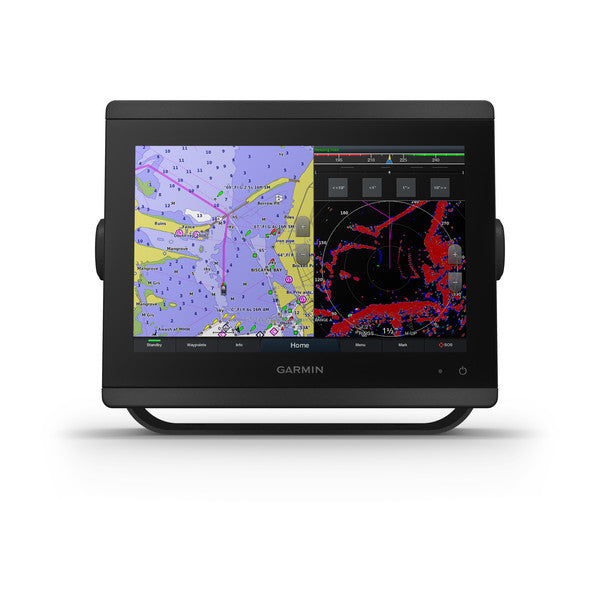

Garmin Gpsmap8610 10"" Plotter With Us And Canada, Gn+

Garmin Gpsmap8610 10"" Plotter With Us And Canada, Gn+

Regular price $2,599.99 USD
Regular price Sale price $2,599.99 USD
Sale Sold out

Garmin GPSMAP8610 10"" Plotter with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02091-50
  • Features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
  • Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
  • Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar and autopilots to instruments, cameras and multimedia
  • ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor and more
  • For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many third-party devices
  • Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.
  • See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway
  • Compatible with your Panoptix™ PS51 transducer with FrontVü™ forward-looking sonar, which helps you avoid running aground
  • SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
  • Built-in Garmin SailAssist™ features provide data, displays and prerace guidance needed to gain a competitive edge
  • Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more.
  • Dual microSD™ card slots on back of unit for use with the ActiveCaptain® app and cartography cards

The GPSMAP® 8610 chartplotter features a 10" full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™ coastal charts and inland mapping that feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. GPSMAP 8610 includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000® networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™ features provide data, displays and prerace guidance to help you gain a competitive edge. Download the ActiveCaptain® smartphone app to your compatible smartphone or tablet to manage your marine experience — from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.

Specifications
General
Physical dimensions 10.25"" x 8.0625"" x 2.95"" (25.9 cm x 20.5 cm x 7.5 cm)
Weight 5.2 lbs (2.4kg)
Water rating IPX6 and IPX7
Display type touchscreen IPS display (anti-glare finish)
Display size 8.6"" x 5.4"" (21.8 cm x 13.7 cm)
Display resolution WUXGA; 1920 x 1200 pixels
Power consumption 2.0 A
Antenna Internal or external over NMEA 2000
Mounting options Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Receiver 10 Hz GPS/GLONASS/Galileo
Garmin Marine Network™ ports 2
Maps & Memory
Accepts data cards 2 microSD cards (on back)
Waypoints 5,000
Routes 100 (250 waypoints each)
Track log 50,000 points; 50 saved tracks
pre-loaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
Outdoor Recreation Features
Tide tables Yes
Chartplotter Features
Garmin Radar compatible Yes
Garmin Sonar compatible Yes
Garmin SmartMode compatible (customizable monitor presets) Yes
Supports AIS (tracks target ships position) Yes
Supports DSC (displays position data from DSC-capable VHF radio) Yes
Supports FUSION-Link™ compatible radios Yes
GSD™ Black Box sonar support Yes
GCV™ Black Box sonar support Yes
ActiveCaptain compatible Yes
Garmin Helm compatible Yes
GRID™ (Garmin Remote Input Device) compatible Yes
Wireless remote compatible Yes
Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable Yes (with external black box, sold separately)
Dual-beam (77/200 kHz) sonar capable Yes (with external black box, sold separately)
Frequencies supported NA
Transmit power NA
CHIRP sonar technology Yes_(when_connected_to_another_compatible_sonar_device)
ClearVü yes (with GCV™ black box, sold separately)
SideVü yes (with GCV™ black box, sold separately)
Maximum depth NA
Connections
NMEA 2000® compatible Yes
Transducer pin numbers NA
NMEA 0183 input ports 1 differential
NMEA 0183 output ports 1 differential
Video input ports 1 - BNC composite
1 - HDMI (HDCP compliant)
Video output ports 1 HDMI
Wireless connectivity Yes

What's in the Box:
  • GPSMAP 8610 Garmin Navionics+ coastal and inland water charts for the U.S. and Canada
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • Documentation
