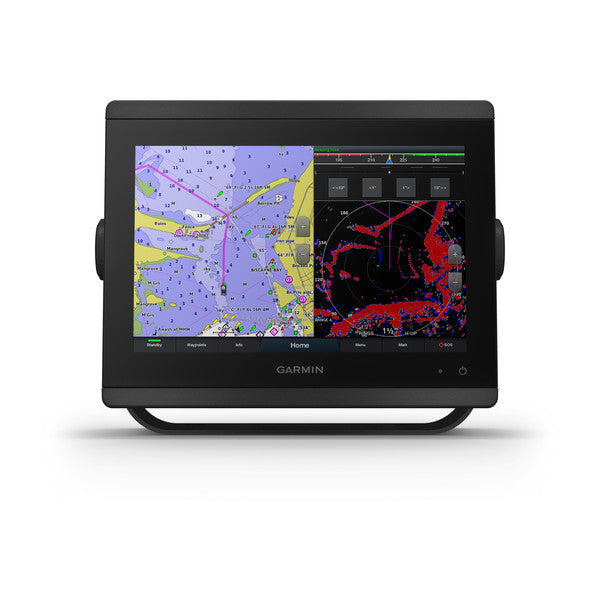

Garmin Gpsmap8410 10"" Plotter
Garmin Gpsmap8410 10"" Plotter
Garmin GPSMAP8410 10"" Plotter
Model: 010-02091-00- Features a 10" full HD IPS touchscreen display
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
- Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking
- Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers
- SmartMode™ station controls enable quick, one-touch access to the information you need
Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8410 chartplotter delivers MFD performance in a combo-size package. It features a 10" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems.
NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.
The GPSMAP 8410 chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications , Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.
Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.
For the most detailed, clear and concise charts and maps, GPSMAP 8410 includes expandable memory for accessory map purchases such as BlueChart® g3 and BlueChart® g3 Vision featuring Navionics data. The charts and maps also include our Auto Guidance technology, which shows a suggested route to a destination , based on your boat’s specifications.
You don’t have to stand for hours at the helm. The optional easy-to-use GRID™ 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions.
To help you make informed decisions, the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.
Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.
SpecificationsGeneral | |
Physical dimensions | 10.25"" x 8.0625"" x 2.95"" (25.9 cm x 20.5 cm x 7.5 cm) |
Weight | 5.2 lbs (2.4kg) |
Water rating | IPX6 and IPX7 |
Display type | touchscreen IPS display (anti-glare finish) |
Display size | 8.6"" x 5.4"" (21.8 cm x 13.7 cm) |
Display resolution | WUXGA; 1920 x 1200 pixels |
Power consumption | 2.0 A |
Antenna | Internal or external over NMEA 2000 |
Mounting options | Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
Receiver | 10 Hz GPS/GLONASS/Galileo |
Garmin Marine Network™ ports | 2 |
Maps & Memory | |
Accepts data cards | 2 microSD cards (on back) |
Waypoints | 5,000 |
Routes | 100 (250 waypoints each) |
Track log | 50,000 points; 50 saved tracks |
pre-loaded maps | Worldwide Basemap |
Outdoor Recreation Features | |
Tide tables | Yes |
Chartplotter Features | |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Supports FUSION-Link™ compatible radios | Yes |
GSD™ Black Box sonar support | Yes |
GCV™ Black Box sonar support | Yes |
ActiveCaptain compatible | Yes |
Garmin Helm compatible | Yes |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Wireless remote compatible | Yes |
Sonar Features & Specifications | |
Dual-frequency (50/200 kHz) sonar capable | Yes (with external black box, sold separately) |
Dual-beam (77/200 kHz) sonar capable | Yes (with external black box, sold separately) |
Frequencies supported | NA |
Transmit power | NA |
CHIRP sonar technology | Yes_(when_connected_to_another_compatible_sonar_device) |
ClearVü | yes (with GCV™ black box, sold separately) |
SideVü | yes (with GCV™ black box, sold separately) |
Maximum depth | NA |
Connections | |
NMEA 2000® compatible | Yes |
Transducer pin numbers | NA |
NMEA 0183 input ports | 1 differential |
NMEA 0183 output ports | 1 differential |
Video input ports | 1 - BNC composite 1 - HDMI (HDCP compliant) |
Video output ports | 1 HDMI |
Wireless connectivity | Yes |
What's in the Box:
- GPSMAP 8410
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers
- Documentation
