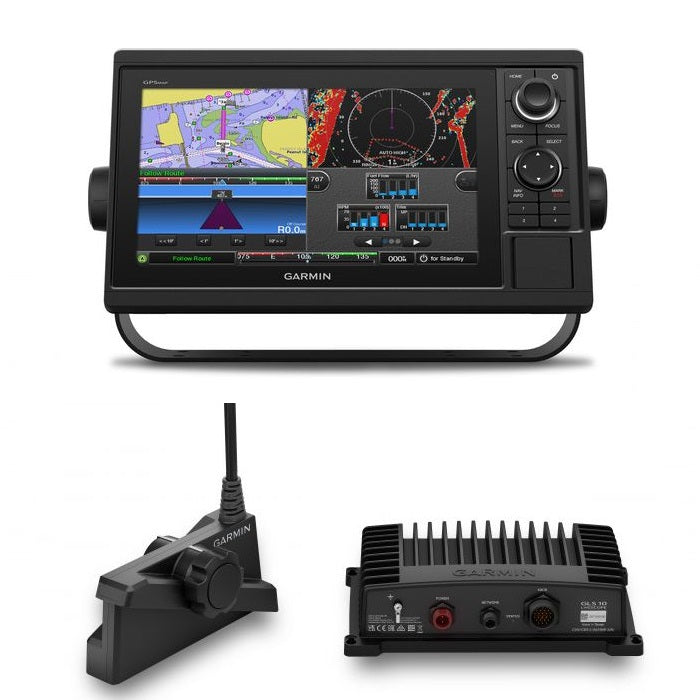

Garmin GPSMAP 1222 Livescope Plus Bundle
What's in the Box: Livescope Plus
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
What's in the Box: 1222
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
Model: 010-01741-00/LVS34
UPC: 753759168339
- 12-inch color display with keypad interface and multifunction control knob
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
- Supports optional BlueChart® g2 Vision® HD charts for Auto Guidance and other premium navigation features
GPSMAP 1222 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.
Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.
Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.
Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.
Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD, which adds Garmin patented Auto Guidance and other great features.
To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.
If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
1Auto Guidance is for planning purposes only and does not replace safe navigation operations.
Garmin Panoptics Livescope Plus
Model: 010-02706-00
- See images clearly with improved screen clarity, transducer sensitivity and target separation.
- Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
- Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
- Get maximum contrast and clarity in your images with vivid color palettes.
- Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
Real-time sonar ensures that your live images are as accurate as possible.
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
Choose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
Scout ahead of your boat to see what’s happening in real time.
Explore live views of the activity directly beneath your boat.
See under the water with a view from your perspective above the water.
Specifications
Performance and Physical | |
Dimensions | 14.1"" x 8.9"" x 2.7"" (35.8 x 22.6 x 6.9 cm) |
Display size | 10.3"" x 6.4"" (26.2 x 16.3 cm) |
Display resolution | 1280 x 800 |
Display type | WXGA display |
Weight | 5.2 lbs |
Water rating | IPX7 |
Antenna | Internal or external over NMEA 2000 |
NMEA 2000® compatible | Yes |
NMEA 0183 compatible | Yes |
SiriusXM™ Weather & Radio compatible | Yes |
Power consumption | Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A |
Mounting options | Bail or flush |
Maps and Memory | |
Preloaded maps | None |
Accepts data card | 2 SD™ cards |
Waypoints | 5,000 |
Routes | 100 |
Track log | 50,000 points; 50 saved tracks |
Outdoor Recreation Features | |
Tide tables | Yes |
Chartplotter Features | |
Garmin Radar compatible | Yes |
Garmin Sonar compatible | Yes (with external black box, sold separately) |
Garmin SmartMode compatible (customizable monitor presets) | Yes |
Supports AIS (tracks target ships position) | Yes |
Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
Garmin Meteor™ Audio System compatible | Yes |
Supports FUSION-Link™ compatible radios | Yes |
GSD™ Black Box sonar support | Yes |
GCV™ Black Box sonar support | Yes |
ActiveCaptain compatible | Yes |
Garmin Helm compatible | Yes |
GRID™ (Garmin Remote Input Device) compatible | Yes |
Wireless remote compatible | Yes |
Sonar Features & Specifications | |
CHIRP sonar technology | Yes (with external black box, sold separately) |
ClearVü | Yes (with external black box, sold separately) |
SideVü | Yes (with external black box, sold separately) |
Connections | |
NMEA 2000® compatible | Yes |
NMEA 0183 input ports | 1 |
NMEA 0183 output ports | 1 |
Video input ports | 1 BNC |
Video output ports | None |
Wireless connectivity | Yes |
