Garmin

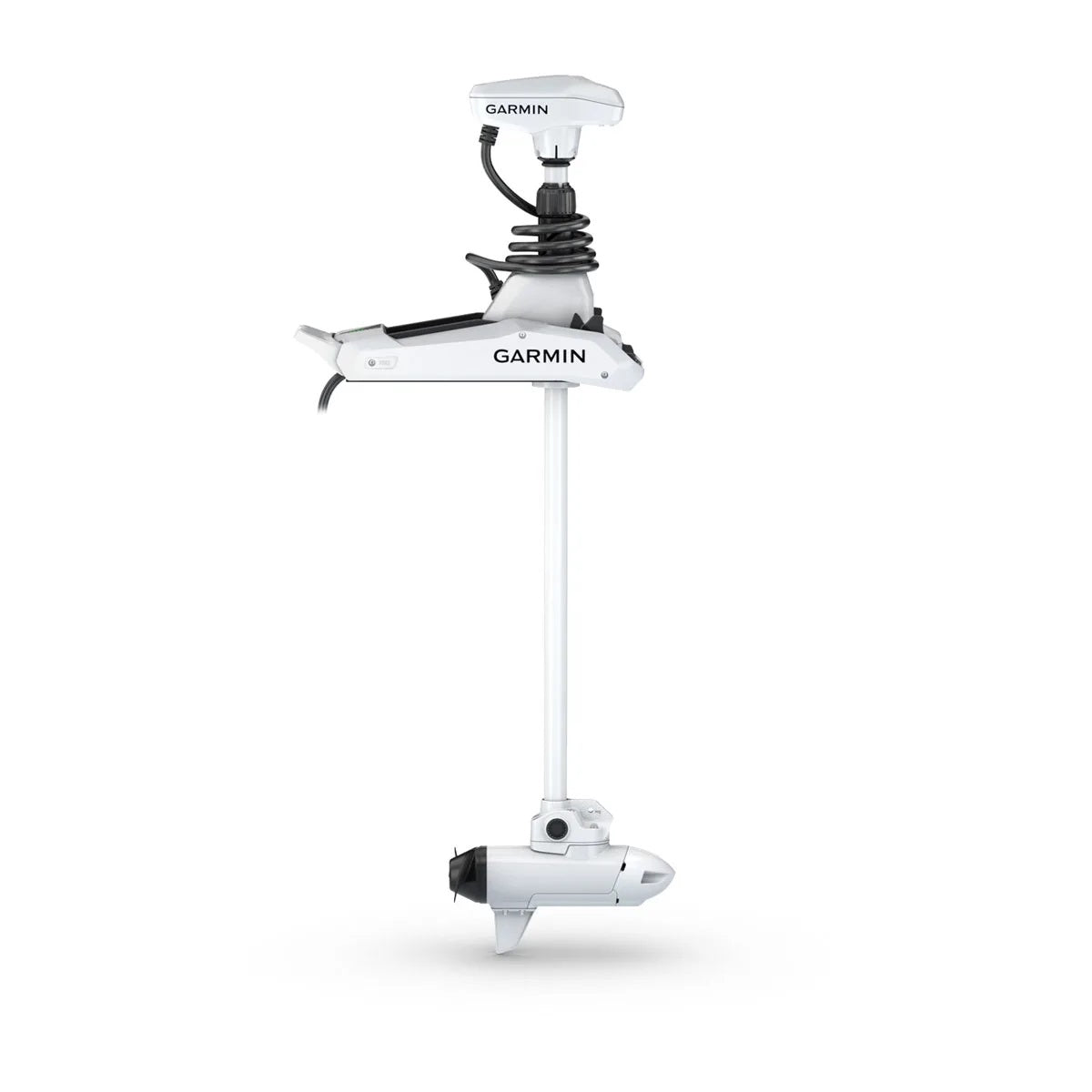

Garmin Force Kraken Trolling Motor White 48"" Shaft No Tranducer
Garmin Force Kraken Trolling Motor White 48"" Shaft No Tranducer
Garmin Force Kraken 48"" Shaft White Trolling Motor No Transducer
Model: 010-02574-30- Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342)
- Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold
- Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow
- Easy installation where space is limited, thanks to the pivot-style mount
- Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down
- Sturdy composite shaft is built to endure harsh marine environments
- LiveScope™ live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft
- Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design
- Clear sonar returns with extremely low levels of unwanted noise
- Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery
- Don’t spook the fish; motor is extremely quiet above and below the water
- Designed for saltwater with advanced corrosion protection
There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope™ live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.
SpecificationsGeneral | |
COLOR | white |
FOR USE IN | freshwater, brackish water and saltwater |
MOUNT STYLE | pivot-style mount |
MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc |
VOLTAGE | 24V_36V |
ELECTRIC STEERING | Yes |
BUILT-IN HEADING SENSOR | Yes |
BUILT-IN GPS | yes (dual frequency GPS) |
WARRANTY | 3-year, limited lifetime on shaft |
WATER RATING | IPX7 |
MOUNTING LOCATION | bow |
WIRELESS REMOTE | yes (included) |
FOOT PEDAL COMPATIBLE | yes |
BATTERY INDICATOR | Yes |
VARIABLE SPEED CONTROL | yes (20 steps) |
LIGHTED DIRECTION INDICATOR | Yes |
DECK STABILIZER | No |
QUATIX REMOTE CONTROL SUPPORTED | Yes |
Sonar Features | |
LIVESCOPE CABLE INTEGRATION | yes (LiveScope transducer and Kraken Mounting Bracket purchases required) |
Autopilot Features | |
ROUTE FOLLOWING | Yes |
ANCHOR LOCK | Yes |
ANCHOR LOCK JOG | Yes |
HEADING HOLD | Yes |
CRUISE CONTROL | Yes |
GESTURE FEATURES | yes (manual+, heading hold+, jog+) |
Foot Pedal Features | |
DIMENSIONS | 12"" L x 9"" W x 4 1/2"" H |
WIRELESS COMMUNICATION | Yes |
POWER INSTALLATION | 12V/24V/36V wired or battery powered (2 AA) |
AA BATTERY LIFE | 1 full season |
WATER RATING | IPX7 |
ADJUSTABLE PEDAL RESISTANCE | Yes |
Remote Features | |
DISPLAY SIZE | 1.2"" (30.4 mm) diameter |
DISPLAY RESOLUTION | 240 x 240 pixels |
DISPLAY TYPE | color, sunlight-visible, transflective memory-in-pixel (MIP) |
CHARTPLOTTER USER-PROGRAMMABLE KEYS | Yes |
AUTOPILOT FEATURE CONTROL | Yes |
WATER RATING | IPX7 |
BATTERY LIFE | typical use with backlight at low, 43 weeks |
FLOATS | Yes |
What's in the Box:
- 48"" White Shaft Force Kraken Motor
- Remote Control
- High-efficiency Propeller
- Assembly and Mounting Hardware
- Documentation
