Fusion Electronics

Fusion Sg-sl103spw 10"" Speaker 600 Watt Sub-woofer 3i Sport Grille White

Fusion Sg-sl103spw 10"" Speaker 600 Watt Sub-woofer 3i Sport Grille White

Regular price $399.99
Regular price Sale price $399.99
Sale Sold out

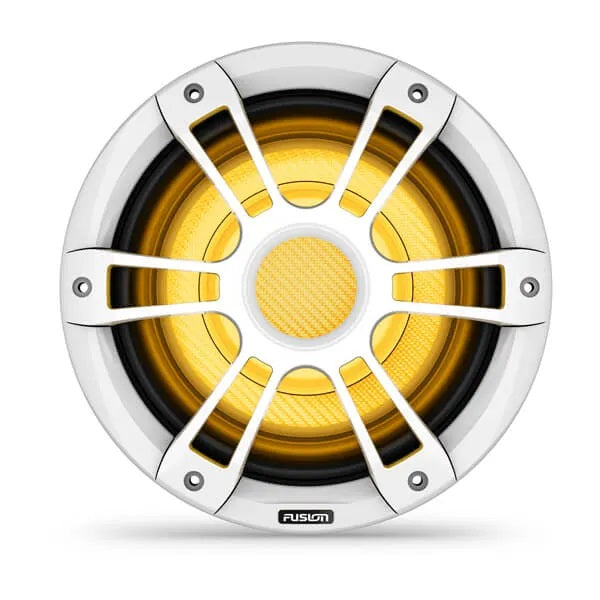

Fusion Signature Series 3i 10"" 600-watt CRGBW Sports White Marine Subwoofer

Model: 010-02774-10
  • Crystal-clear premium sound quality is suited for the marine environment.
  • Water-resistant connectors provide simplified installation and superior protection.
  • The rigorously tested marinized design has an IP65 rating.
  • Built to last season after season, the Signature Series 3i subwoofers include a supported 3-year warranty.
  • CRGBW LED lights set the scene on your boat.

New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.

Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.

Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.

This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.

These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.

Cool white, red, green, blue, warm white. You can choose or mix colors to match the mood of your music.

Specifications
Physical dimensions (diameter x depth) 10.83"" x 6.77"" (275 x 172 mm)
Weight 11.2 lbs (5.06 kg)
Water and dust rating IP65
Peak power (Watts) 600 watts
RMS power rating (watts) 300 watts
Sensitivity (1 watt @ 1 metre) 86 dB
Magnetic structure 68 oz
Frequency response 30 Hz—2 kHz
Nominal impedance 4 ohm
Recommended amplifier power (watts RMS) 50—600 watts
LED lighting yes, CRGBW (sports style with LED models only)
LED supply voltage 10.8—16 VDC (sports style with LED models only)
LED load current @14.4 VDC (max) 300 mA (sports style with LED models only)
Operating temperature range 32—122 degrees F (0—50 degrees C)
Voice coil diameter 2""
Cone material Polypropylene cone with rubber surround
Compass-safe distance 205"" (520 cm)
Subwoofer connection Flying lead with water-resistant 2-way connector, 5.9"" (150 mm)
LED connection (sports style with LED models only) Flying lead with water-resistant 6-way connector, 5.9"" (150 mm)
Warranty 3 years
Mounting Dimensions
Mounting diameter clearance 8.78"" (223 mm)
Optimum enclosure recommendations
Sealed enclosure volume (fully filled with absorption material) 0.95 cubic ft (27 L)
Ported (vented) enclosure volume (lined with absorption material) 1.6 cubic ft (45 L)
Port diameter 4.1"" (104 mm)
Port length 10.43"" (265 mm)

What's in the Box:
  • 10"" 600-watt CRGBW Sports White Marine Subwoofer
  • 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2")
  • Water-resistant cable assembly with 2-pin connector (5.9"" (150 mm))
  • Water-resistant cable assembly with 6-pin connector ((5.9"" (150 mm)); sports style with LED models only)
  • Documentation
