Fusion Electronics

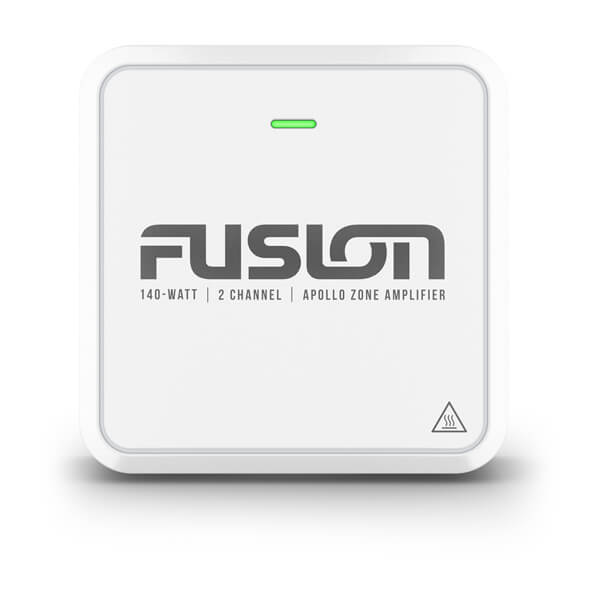

Fusion Apollo Ap-da214 Zone Amplifier 2 Channel 140 Watt

Fusion Apollo Ap-da214 Zone Amplifier 2 Channel 140 Watt

Regular price $179.99
Regular price Sale price $179.99
Sale Sold out

Fusion® Apollo AP-DA214 Marine Amplifiers, Zone Marine Amplifier

Model: 010-02569-00

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

Easily install the amplifiers on board with the included mounting brackets.

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It’s compatible with 12- and 24-volt electrical systems.

Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required.

Physical dimensions without bracket (LxWxH) 3.94"" x 3.94"" x 1.57"" (100 x 100 x 40 mm)
Physical dimensions with bracket (LxWxH) 3.94"" x 4.53"" x 1.89"" (100 x 115 x 48 mm)
Weight 1.01 lb (460 g)
Water Rating IPX7
Amplifier class Class-D
CEA-2006 power rating 20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD
Total rated power output - 2 ohm (watts) 30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD
Total rated power output - 4 ohm Bridged (watts) NA
Peak power (watts) 140 watts
Input sensitivity 0.45 V RMS
Input impedance 9k Ohm
Operating voltage 10.8 V - 32 V DC
Current consumption (StandBy) < 1 mA @ 14.4 V input
Current consumption (Idle) < 0.04 A @ 14.4 V input
Current consumption (Max) 10 A
Fuse rating 16 A electronic fuse (no replacement necessary)
Ignition Safety Protected (SAE J1171) Yes
Protection circuits Reverse voltage
Input under/over voltage
Over temperature
Output short circuit
Operating temperature range 32° to 122° F (0° to 50° C)

What's in the Box:
  • One Apollo zone amplifier
  • One mounting bracket
  • Three 6-guage, self-tapping screws
  • Wiring loom
  • Installation instructions
  • Important safety and product information (ISPI)
