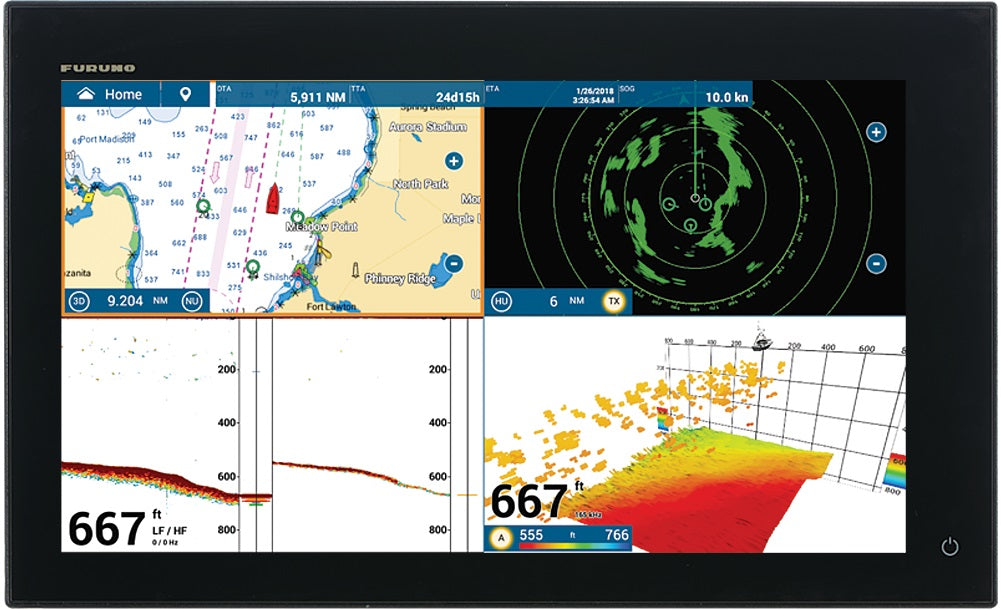

Furuno Tzt-19f 19"" Tztouch3 Multifunction Display

Furuno Tzt-19f 19"" Tztouch3 Multifunction Display

Regular price $8,495.00
Regular price Sale price $8,495.00
Sale Sold out

Furuno TZT19F 19"" TZtouch3 Chart Plotter/Fish Finder

Model: TZT19F
  • Go on a power trip with the most powerful MFD series available
  • EASY to use; because finding your happy place shouldn't be difficult!
  • The return of Hybrid Control
  • Protect your livelihood with new PIN CODE security
  • Never lose waypoints, routes or settings again with TZ Cloud
  • We gave you something to CHIRP about!

Experience navigation like never before with this stunning and powerful 19" Multi Function Display. Imagine having one or multiple units on your helm, giving you a conning station that makes it look like you’re the captain of a sci-fi spaceship! Featuring a new, powerful quad-core processor for lighting-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder.

We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.

TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth & seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.

The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (* raster planning charts for US only)

You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!

Are you ready to go on a Radar power trip? Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno’s NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.

Type Color TFT multi touch In-Plane Switching (IPS) LCD
Screen Size 18.5"" Wide
Screen Resolution FHD 1920 x 1080
Screen Brightnes 900 cd/m2 (typical)
Display Colors 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish GPS/WAAS
Receiver Type GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS
Receiving Frequency L1 (1575.42 MHz)
Time to First Fix 100 s (cold start)
Accuracy 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update Interval 0.1 s (10Hz)
Cartography MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory Capacity 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required)
Display Modes Head-up*, North-up *Heading input required.
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking 30 ARPA Targets
Radar Alarms Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line
Transmit Frequency CW: 50/200kHz CHIRP: 40kHz to 225kHz
Transducer 300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers
Display Range 2 to 1,200 m, shift: 0 to 1,200 m
Extension Mode ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM
Picture Advance 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option) School of fish, School of fish for bottom lock
CAN bus/NMEA2000 1 Port
NMEA0183 1 Serial Output Port
LAN 2 Ports (100 BASE-TX)
USB 1 Port (USB2.0) for touch monitor and control unit: 1 Port USB output
Video I/O Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only)
Output: 1 port(HDMI 1080p)
AUX I/O 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output
SD Card Slot 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer 1 Port, 1 Port — DI-FFAMP
ENVIRONMENT -15°C to +55°C
Relative Humidity 93% or less at +40° C
Waterproofing IP56
Voltage 12-24 VDC
Current draw 4.7 - 2.3 A

What's in the Box:
  • Multi Function Display 19""
  • Grey Silicone Cover
  • Power Cable Assy 2m
  • 12 to 10pin Transducer adapter cable
  • LCD Cleaning Cloth
  • Flush Mount Fixture x 2
  • Flush Mount Sponge 12H x 2
  • Flush Mount Sponge 12V x 2
  • Slotted Head Hex Bolt M6x12 x 2
  • EMI Core GRFC-10
  • Connector Caps
  • Flush Mounting Template
  • Operator'sGuide
  • Installation Manual
