Blue Sea M-lvd Low Voltage Disconnect 12vdc
Blue Sea M-lvd Low Voltage Disconnect 12vdc
Regular price
$115.80
Regular price
Sale price
$115.80
Unit price
per
Couldn't load pickup availability

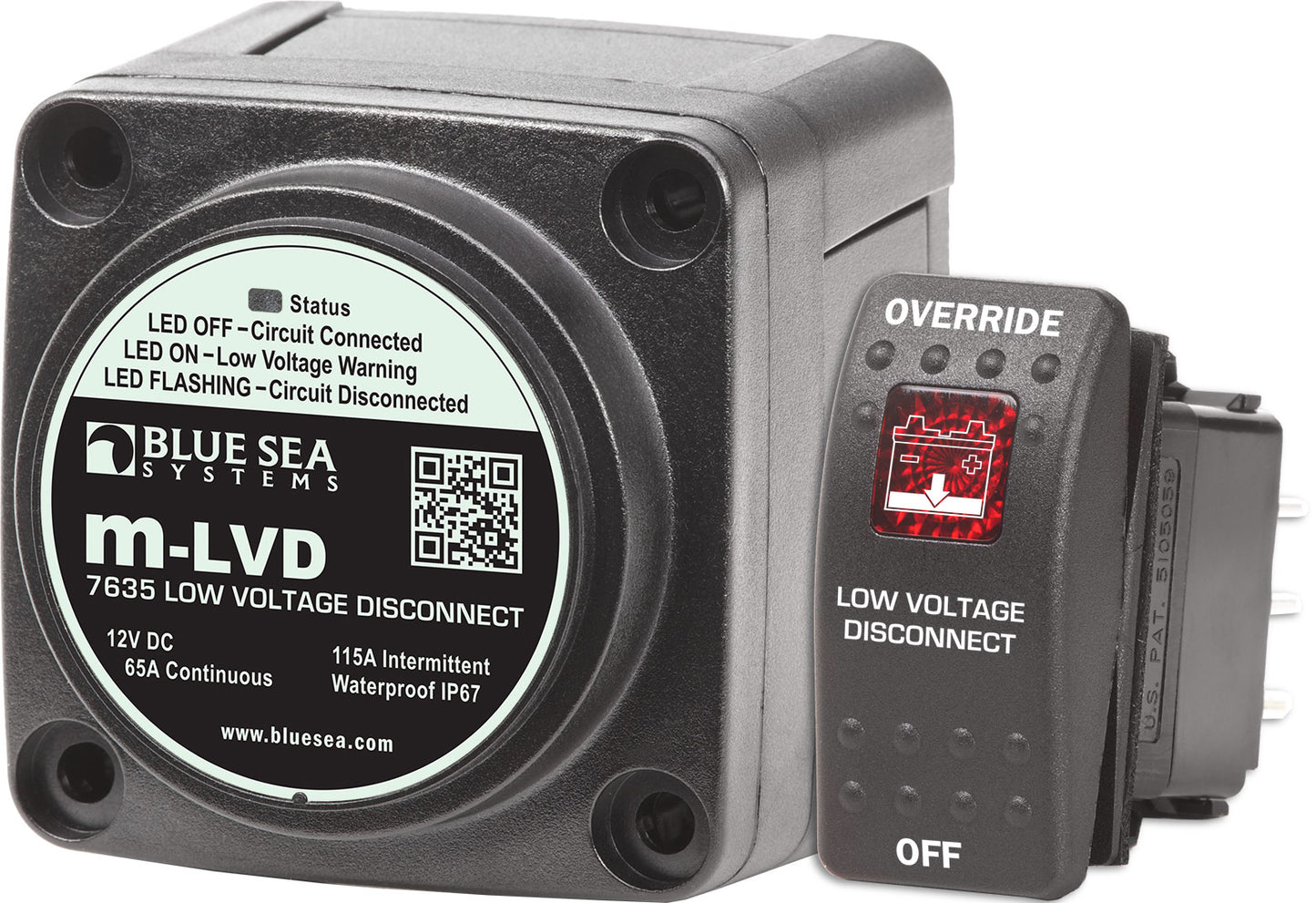

Blue Sea Systems m-LVD Low Voltage Disconnect
Model: 7635-BSS- Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
- Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.
Specifications| Nominal Voltage | 12V DC |
| Amperage Operating Current | 95mA (Connected) 4mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A (5 Min) |
| Maximum Cable Size | 1/0 AWG (50mm2) |
| Stud Material | Tinned Brass |
| Terminal Stud Length | 7/16 in (11.11 mm) |
| 7/16 in (11.11 mm) | 1/4"" - 20 (M6) |
What's in the Box:
- M-LVD Low Voltage Disconnect
- m-LVD Switch
