Airmar Ss175c-12-m 12d Tilt Medium Chirp With Humminbird 9-pin

Airmar Ss175c-12-m 12d Tilt Medium Chirp With Humminbird 9-pin

Regular price $1,522.50
Regular price Sale price $1,522.50
Sale Sold out

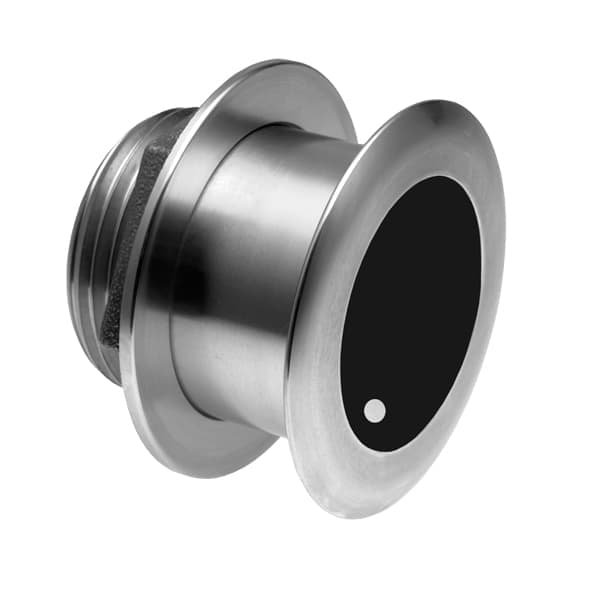

Airmar SS175C-12-M 12d Tilt

Medium CHIRP with Humminbird 9-Pin

Model: SS175C-12-M
  • Depth and water-temperature sensor
  • 1 kW
  • Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32° to 21° beamwidth
  • Great deep water performance
  • High performance, low-profile thru-hull housing provides good resolution at speed when installed properly
  • Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal
  • Recommended boat size: Up to 11 m (36')
  • Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls
  • Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.

Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

Weight 2.7 kg (6 lb)
Hull Deadrise 8° to 15° hull deadrise
Acoustic Window Urethane
Hole Size 98 mm (3-7/8"")
Seven internal broadband ceramic assemblies
