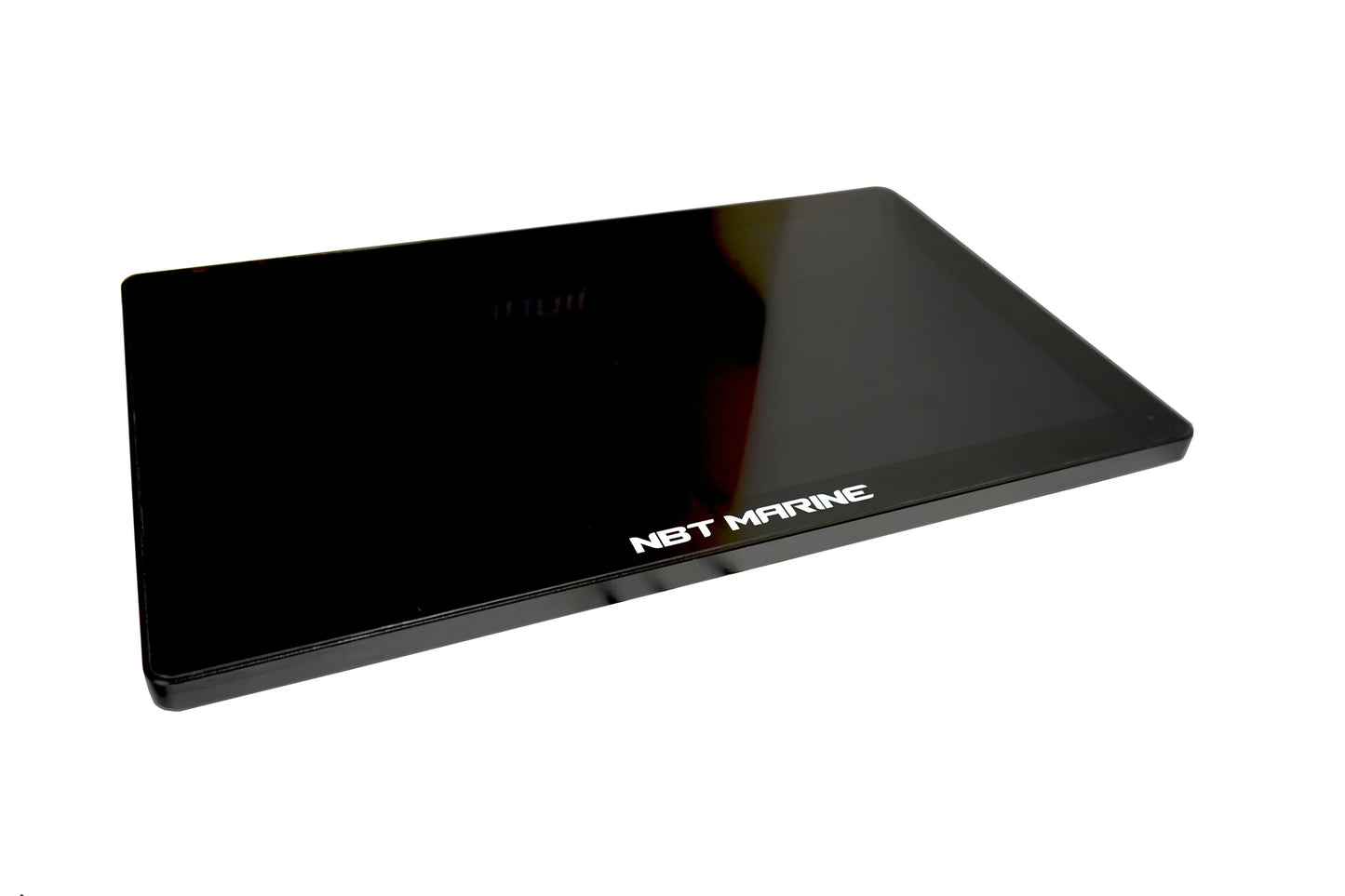

18" NBT Cruiser

18" NBT Cruiser

$3,499.99
$3,499.99
Sale Sold out
The All new 18 Inch Cruiser Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243 units. (see below for compatible unit lists)


Specifications

  • Display Resolution - 1920x1080
  • Weight - 13LBS
  • Waterproof - IP67
  • Mounting Options - Included gimbal
  • Touch screen
  • Dimensions 18.5" x 11.5" x 21.5" diagonal
  • Display Size 18.5" diagonal
  • Glass Type - Optical Bonding, with Anti-Glare  UV coatings
  • Brightness - 1500 NITS (vivid sunlight readable)
  •  Operational Temperature - -20c to +75C (-4F to +170F)
  • Touch Type - 10 Points Capacitive touch, Touch ON/OFF control
  • Remote OSD - Included remote control
  • Rugged Shock - 20G
  •  NOTE - Polarization has been upgraded



Sonar Features and Compatibility

  • LIVESCOPE - All compatible units up to 2 Live scopes
  • SIDE VU / DOWN VU - All compatible XSV units or GCV box
  • Up to 6 Split screen boxes!


Cords/Cables

  • HDMI CABLE - 8 meters (26 feet)
  • DC POWER CABLE - 4 meters (13 feet)
  • USB CABLE - 8 meters (26 feet)



Electrical Features

  • POWER INPUT - 1 x DC 10V to 28V
  • TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
  • MAXIMUM CURRENT DRAW AT 12 VDC - 6A


Compatible Chart plotters

  • GARMIN 8700
  • GARMIN 8610 8410 (XSV) or NON - some limitations
  • GARMIN 8612 8412 (XSV) or NON
  • GARMIN 8616 8416 (XSV) or NON
  • GARMIN 1243 (XSV) or NON - some limitations
