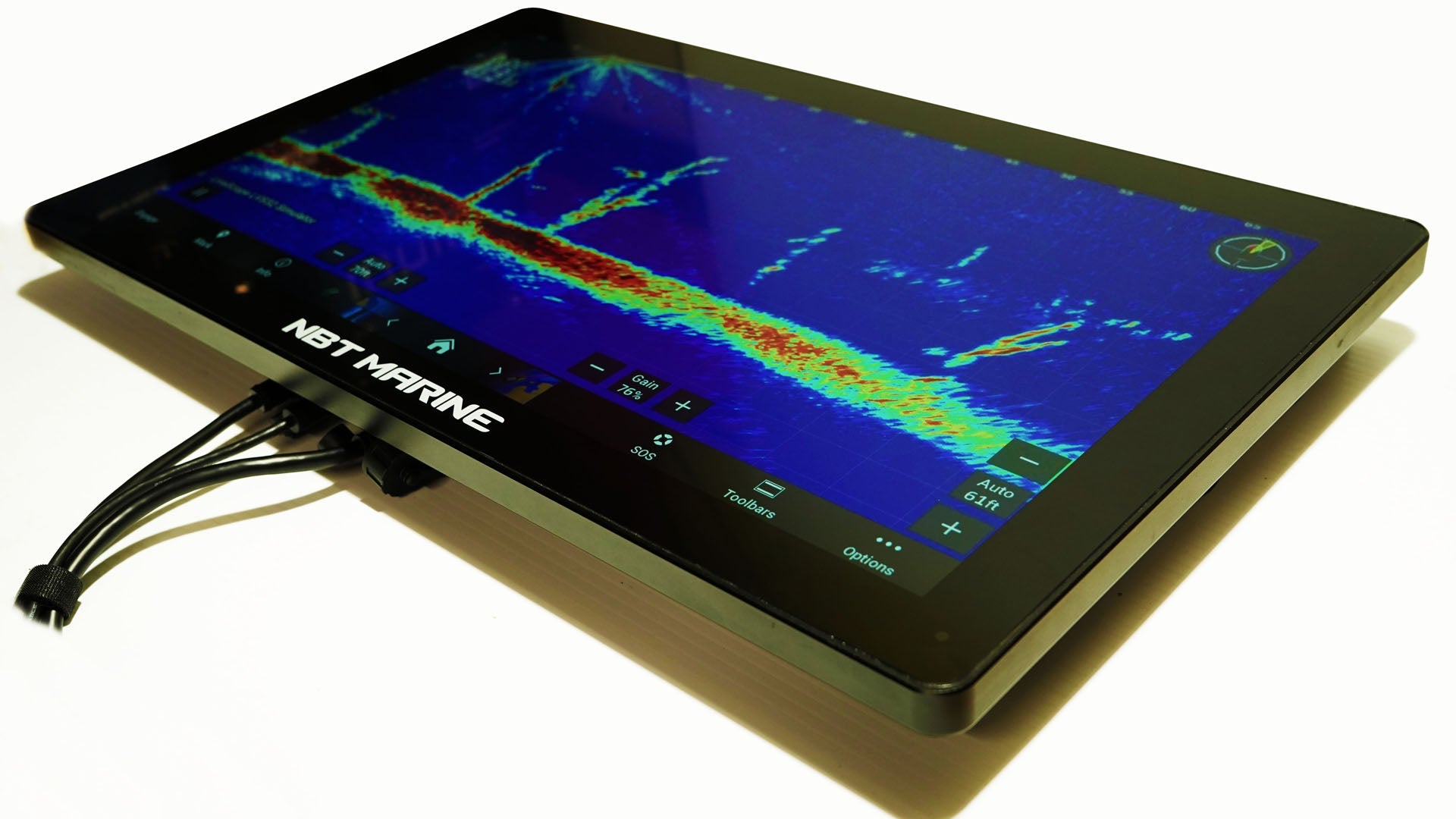

16" NBT Destroyer
16" NBT Destroyer
The All new 16 Inch Destroyer Units comes as a Plug And Play kit ready to link to your Garmin 86XX or 1243 units. (see below for compatible unit lists)
Specifications
Display Resolution - 1920x1080
Weight - 4.5KG (10LBS)
Waterproof - IP67
Mounting Options - Included gimbal
Touch screen
Dimensions 13.6" x 8" x 16.5" diagonal
Display Size 16.5" diagonal
Glass Type - Optical Bonding, with Anti-Glare UV coatings
Brightness - 1500 NITS (vivid sunlight readable)
Operational Temperature - -20c to +75C (-4F to +170F)
Touch Type - 10 Points Capacitive touch, Touch ON/OFF control
Remote OSD - Included remote control
Rugged Shock - 20G
NOTE - Polarization has been upgraded
Sonar Features and Compatibility
LIVESCOPE - All compatible units up to 2 Live scopes
SIDE VU / DOWN VU - All compatible XSV units or GCV box
Up to 6 Split screen boxes!
Cords/Cables
HDMI CABLE - 8 meters (26 feet)
DC POWER CABLE - 4 meters (13 feet)
USB CABLE - 8 meters (26 feet)
Electrical Features
POWER INPUT - 1 x DC 10V to 28V
TYPICAL CURRENT DRAW AT 12 VDC - 4.2 A
MAXIMUM CURRENT DRAW AT 12 VDC - 6A
Compatible Chart plotters
GARMIN 8700
GARMIN 8610 8410 (XSV) or NON - some limitations
GARMIN 8612 8412 (XSV) or NON
GARMIN 8616 8416 (XSV) or NON
GARMIN 1243 (XSV) or NON - some limitations
HUMMINGBIRD APEX SERIES - some limitations
